Samsung TV Dimensions Guide (True Length and Width Of All Sizes)

When you buy through our links, we may earn an affiliate commission.

The average true Samsung TV dimensions relative to its screen size are as follows:

Screen SizeLength x Width (Stand)Length x Width (No Stand)
32”29.3″ x 18.4″29.3” x 17.4”
40”36.3″ x 23.4″36.3″ x 20.9″
43”38.57” x 23.48”38.57” x 22.51”
49”43.3” x 27.9”35.56” x 20.32”
50”44.0” x 26.95”44.0” x 25.37”
55” Curved48.7” x 28.1”48.7” x 26.5”
55”48.50” x 29.36”48.50” x 27.88”
58”50.8” x 32.25”50.8” x 29.47”
65” Curved57.2” x 33”57.2” x 28.1”
65”57.12” x 34.3”57.12” x 32.73”
70”61.9″ x 37.8″61.9″ x 34.4″
75”65.7″ x 40.1″65.7″ x 37.7″
82”72.1″ x 45″72.1″ x 41.3″
85”74.5″ x 45.1″74.5″ x 42.6″
98”86″ x 51.9″86″ x 49.2″

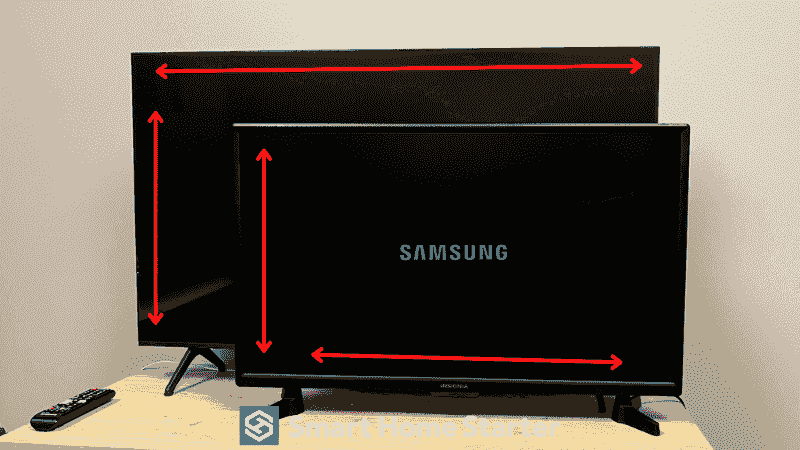

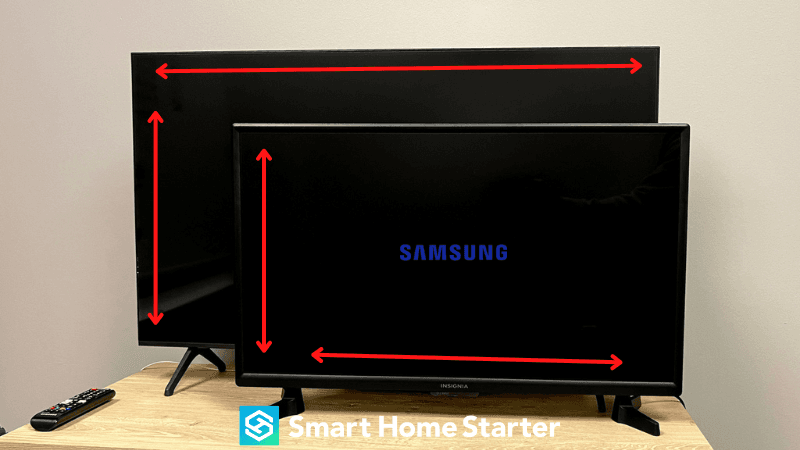

How do You Find the Measurements for a Samsung TV?

Screen size is measured only diagonally from corner to corner on all televisions, except for a CRT TV, which also includes the casing.

This means the true length and width will be slightly different than that number, as those are measured horizontally and vertically and include casings and stands.

Many of Samsung’s more recent television models have the same standard dimensions. However, there are always exceptions, with some models varying wildly.

So, if you’re wondering, “how big is my Samsung TV?” here are ways to find the true dimensions of a Samsung TV:

  • Look on the box
  • Check the dimensions on an online listing
  • Receipts sometimes include them
  • Measure it yourself

The first number(s) in the Samsung TV model numbers are also the screen size in inches, so the UN55TU8300FXZA has a 55-inch screen.

What are the Dimensions of a 32-inch Samsung TV Screen?

The average dimensions for a 32-inch Samsung TV such as the UN32M4500A are 29.3″ W x 18.4″ or 73.74cm x 46.53cm with the stand and 29.3” x 17.4” or 73.74cm x 43.79cm without.

What are the Dimensions of a 40-inch Samsung TV Screen?

The average dimensions for a 40-inch Samsung TV such as the UN40M5300A are 36.3″ W x 23.4″ or 92.2cm x 59.44cm with the stand and 36.3″ x 20.9″ or 92.2cm x 53.09cm without.

What are the Dimensions of a 43-inch Samsung TV Screen?

The dimensions for a 43-inch Samsung TV tend to vary a lot.

The average sizes are roughly 38.57” x 23.48” or 97.97cm x 60.4cm with the stand and 35.56” x 20.32” or 90.32cm x 51.62cm without.

Something like the Neo QLED 4K QN90B Series Mini LED Quantum is pretty close to this average.

What are the Dimensions of a 49-inch Samsung TV Screen?

The average dimensions for a 49-inch Samsung TV are roughly 43.3” x 27.9” or 109.98cm x 70.87cm with the stand and 35.56” x 20.32” or 90.32cm x 51.62cm without.

This size hasn’t been on Samsung’s website since about 2017, but a UN49MU7000 49-Inch 4K Ultra HD Smart LED TV (2017 Model) can still be found through their Amazon store.

What are the Dimensions of a 50-inch Samsung TV Screen?

The average dimensions for a 50-inch Samsung TV like their Class Crystal 4K UHD AU8000 Series are roughly 44.0” x 26.95” or 111.76cm x 68.45cm with the stand and 44.0” x 25.37” or 111.76cm x 64.44cm without.

What are the Dimensions of a 55-inch Samsung TV Screen?

A 55-inch screen is one of two sizes with a curved screen in production alongside the 55-inch LED TVs and 55-inch QLED TVs.

The standard 55-inch Samsung TVs are roughly 48.50” x 29.36” or 123.19cm x 74.57cm with the base and 48.50” x 27.88” or 123.19cm x 70.82cm without.

Those such as the 55-inch Class Curved UHD TU-8300 Series – 4K UHD HDR Smart TV are slightly different sizes from the standard 55-inch screens.

These are more like 48.7” x 28.1” or 123.7cm x 71.37cm with the stand and 48.7” x 26.5” or 123.7cm x 67.3cm without on average.

What are the Dimensions of a 58-inch Samsung TV Screen?

The dimensions for a 58-inch Samsung TV such as the UN58TU7000 58″ 4K Ultra HD Smart LED TV are roughly 50.8” x 32.25” or 129.032cm x 81.92cm with the stand, and 50.8” x 29.47” or 129.03cm x 74.85cm without.

What are the Dimensions of a 65-inch Samsung TV Screen?

This is the second of the two televisions Samsung still offers with a curved screen.

The standard 65-inch screen, such as the 65-inch Class QLED Q800T Series, comes in at 57.12” x 34.3” or 145.08 x 87.12cm with the stand and 57.12” x 34.3” or 145.08cm x 83.13cm without.

Whereas the 65-inch Class Curved UHD TU-8300 Series comes in at 57.2” x 33” or 145.29cm x 83.82cm with the stand and 57.2” x 28.1” or 145.29cm x 71.37cm without.

What are the Dimensions of a 70-inch Samsung TV Screen?

The average dimensions for a 70-inch Samsung TV, such as the BE70T-H Pro TV, are roughly 61.9” x 37.8” or 157.23cm x 96.01cm with the stand and 61.9” x 34.4” or 157.23cm x 87.38cm without.

What are the Dimensions of a 75-inch Samsung TV Screen?

The average dimensions for a 75-inch Samsung TV, like the 75-inch Class QLED Q800T, are roughly 65.7” x 40.1” or 166.88cm x 101.85cm with the stand and 65.7” x 37.7” or 166.88 x 95.76 without.

What are the Dimensions of an 82-inch Samsung TV Screen?

The average dimensions for an 82-inch Samsung TV along the lines of an 82-Inch Class Crystal TU 7000 Series are roughly 72.1″ x 45″ or 183.13cm x 114.3cm with the stand and 72.1″ x 41.3″ or 183.13cm x 104.9cm without.

What are the Dimensions of an 85-inch Samsung TV Screen?

The average dimensions for an 85-inch Samsung TV are roughly 74.5″ x 45.1″ or 189.23cm x 114.55cm with the stand and 74.5″ x 42.6″ or 189.23cm x 108.2cm without.

What are the Dimensions of a 98-inch Samsung TV Screen?

The dimensions for a 98-inch Samsung TV such as the QN98QN90AAFXZA 98 Inch Neo QLED HDR 4K are roughly 86″ x 51.9″ or 218.44cm x 131.83cm with the stand and 86″ x 49.2″ or 218.44 x 124.97 without.

Note: The dimensions in this article were calculated by averaging and rounding several different models, and your specific model may be slightly different. Please see your model’s specifications for exact measurements.

Additionally, while Samsung rarely phases out sizes on their televisions, it does appear that they are leaning towards screen sizes in 10” increments starting at 55”.

This is at least on their website and official channels, where odd sizing is currently either grayed out, low in stock or non-existent.

What are the Dimensions of The Frame TV?

The Frame TV is one of Samsung’s nice televisions with a matte coating and a beveled frame. Coupled with other features, they look like artwork instead of a television.

The Frame TVs have different dimensions than standard Samsung televisions, ranging from 32” to 85”.

Does Screen Size Matter?

Most salespeople will try and sell the biggest, fanciest television they have. Larger screens are great; if they have the budget and space.

Here are some reasons why screen size matters when selecting a television:

  • Improper viewing distance can cause eye strain
  • Distorted images at poor viewing angles
  • Overpower the space
  • Be unstable on wall mount or stand
  • May not have as good screen resolution as a similarly priced smaller screen
  • Budget can be a problem

How to Calculate Your Viewing Distance and Screen Size

Knowing the right TV size for your space, and how to calculate your viewing distance are important steps to take in preventing eye strain. It makes you have a clear view of your TV screen without any form of obstruction or discomfort to the eyes. If you need to calculate the viewing distance or screen size of your TV, here’s how to do so.

This simple formula shown by Samsung support functions as a calculator to help you know which TV size you should get: Viewing distance (in inches) / 2 = Your recommended TV size.
